N-Modular Redundancy Voter gives correct result if the voter is correct and the module majority are correct Compare results itself or checksums of it Tripe-modular redundancy TMR.

N modular redundancy. This model easily provides bumpless switchovers. Dynamic parts which are swapped in. Explanation of N-modular redundancy.

Multiple segmentmodular motor drive with redundancy a an alternative motoriinverter configuration against the device and winding failure b. N-Modular redundancy is an approach to increasing the reliability of hardware systems constructed from component devices that are subject to failure. McGraw-Hill Dictionary of Scientific.

Looking for N-modular redundancy. Triplicate the hardware and perform a majority vote to determine the output of the system If one of the modules becomes faulty the 2 remaining fault-free modules mask the results of the faulty module when the majority vote is performed 8. Fault-tolerant form of N-modular redundancy in which three systems perform a process and that result is processed by a majority-voting system to produce a single output.

Best practices for high availability. Fault tolerant FIR filter designed using N-modular redundancy technique for creating hardware fault tolerance - GitHub - jasnapN_modular_redundancy_FIR. G Any hardware redundancy adds to the overall system.

This paper aims to provide control over the detected fault by using the antique technique of triple modular redundancy TMR which is a type of N-modular redundancy techniques. Triple Modular Redundancy TMR or N-Modular Redundancy NMR assumes functionally identical components which are either. A Design Para- digm for N-Version Programming.

Duplication with comparison scheme duplex systems - two identical pieces. An NMR system can mask faults while less than half of its. Triple modular redundancy TMR is compared with 5-level modular redundancy.

Voter circuits redundant voters imperfect voters and comparisons with parallel and standby schemes are included. When the second failure occurs the voter can no longer work without a majority of working modules 3 to compare. There are a number of well-known reliability implications of the hardware approach that result from assuming independent failures of the hardware components.

Which reaches a trapped state after two failures. Filliatre Deductive Program Verication with Why3 A Tutorial Lecture at DigiCosme Spring School 2013 Lyu92 Michael R Lyu Algirdas Avizienis Assuring Design Diversity in N- Version Software. In our paper we propose a system using the technique of triple modular redundancy to effectively mask and.

3 2. Lockstep computing Lockstep systems are fault-tolerant computer systems that run the same set of operations at the same time in parallel. N-Modular Redundancy generalization of TMR or Triple Modular Redundancy TMR.

The number is typically taken to be at least three. NMR is well-suited for multi-core platforms as they satisfy NMR requirements such as multiple pro-cessing units and low-overhead communication for vot- ing 3. 10 Active hw redundancy Module 1 Module 2 input output 1.

Although it has the highest form of reliability it has not been used to create a fault tolerant system. 2 out of 3 modules deliver correct results Generalization with N-modular redundancy. M faulty modules with n 2m 1 Good for transient faults For permanent faults since the faulty module is not isolated the protective fault tolerance decreases.

N-Modular Redundancy with Voting-n is made an odd number - 5MR tolerates 2 faulty modules Coverage. From an enterprise IT perspective downtime maps directly to lost revenue streams and dissatisfied users. Their output values are then compared and a voter decides which output values should be used.

Integrity Real-Time Programs Reliable Software Technologies Ada-Europe 98 Uppsala Sweden June 1998 Filliatre2013 J-C. 19032017 Gert Jervan TTÜATI 5 Gert Jervan TMR Technique 9. This paper proposes an N-modular redundancy NMR technique with low energy-overhead for hard real-time multi-core systems.

N2m1 Standard case without any redundancy is called simplex 6 R TMR R V R 2of 3. With just one failure TMR continues to operate while continuously voting out the one failed module. A generalization of triple modular redundancy in which there are N identical units where N is any odd number.

N-modular redundancy Article about N-modular redundancy by The Free Dictionary. Triple Modular Redundancy TMR or N-Modular Redundancy NMR assumes functionally identical components which are either. Chapter 4 studies the reliability and availability gains obtained for N-modular redundancy.

Modular redundancy is a basic concept dating to antiquity while the first use of TMR in a computer was the Czechoslovak computer SAPO in the 1950s. After two failures it only. Sider N modular redundancy NMR 9 10 where mul-tiple processing units execute identical copies for each task and their results are voted on to produce a single output.

N Modular Redundancy also known as Parallel Redundancy refers to the approach of having multiply units running in parallel. Markov models and Laplace transform solutions are used for repairable systems. The general case of TMR is called N-modular redundancy in which any positive number of replications of the same action is used.

Find out information about N-modular redundancy. While the accurate calculations vary vastly between organizations the average may cost 9000 per minute according to recent research by. Static parts of the system and connected via a votingmaskingcomparing system or in case of a detected error-condition.

NMR is well-suited for multi-core platforms as they provide multiple. The analogous approach in software is known as N-version programming. Static parts of the system and connected via a votingmaskingcomparing system or in case of a detected error.

This paper reviews. Well annotate this as a TMR. N Modular Redundancy.

All units are highly synchronized and receive the same input information at the same time. Reliability of Computer Systems and Networks. Fault Tolerance Analysis and Design pp145-201 Authors.

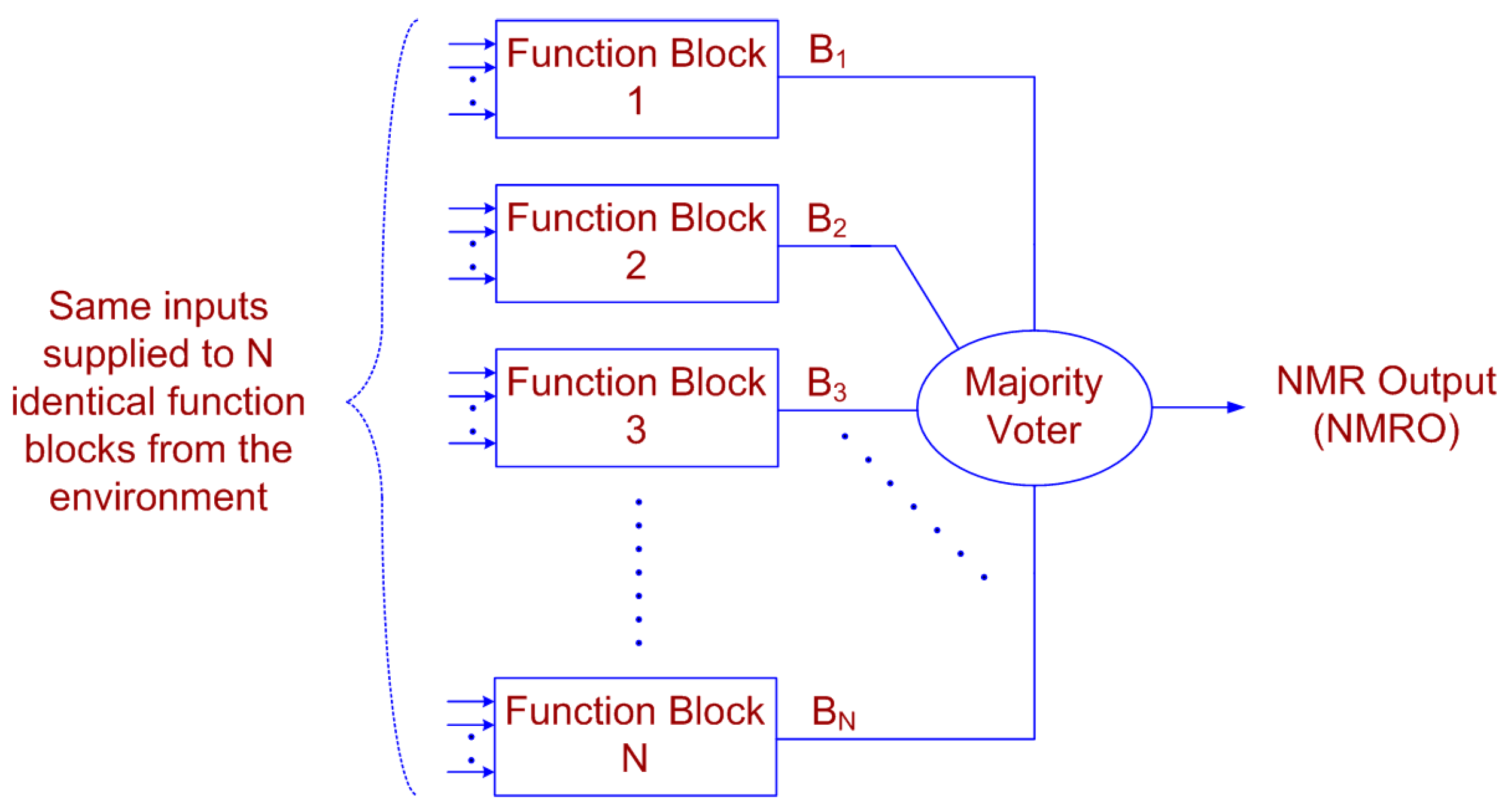

The redundancy model can follow several design principles usually described as N-Modular redundancy.
